Description

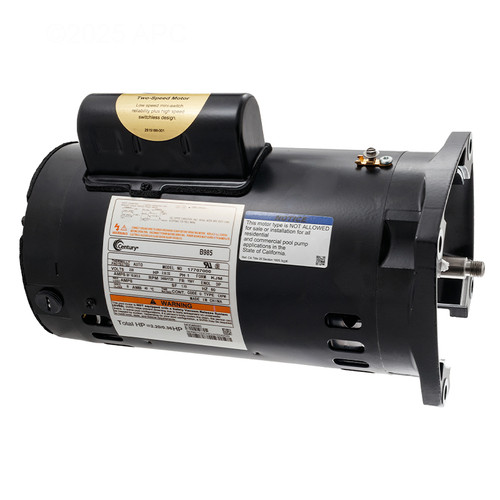

Century(R) B985 Square Flange 2-Speed Up-Rated Pool and Spa Pump Motor; 2/0.33 HP; 3450/1725 RPM; 230 V; 56Y; Threaded Shaft
Features
- Service Factor: 1.10
- 10.0/3.5
- Open Drip Proof
- High Efficiency
- 50 Degrees C
- 303 Stainless Steel Threaded Shaft
- Class B Insulation
Used On
- Sta-Rite Dyna-Jet Pump Parts
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Up-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Up-Rated Pump Parts
- Sta-Rite Max-E Pro Series Pump Parts
Specifications
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.0/3.5 A |
| HP | 2/0.33 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | Capacitor Start/Run on Low Speed, PSC on High Speed |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 2-2-VT |
| Overall Length | 14.40 Inch |
| Phase | 1-Phase |
| RPM | 3450/1725 |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 1-7/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Thrust Horsepower | 2.2 |
| Type | Up-Rated, CXPM |
| Voltage Rating | 230 V |
